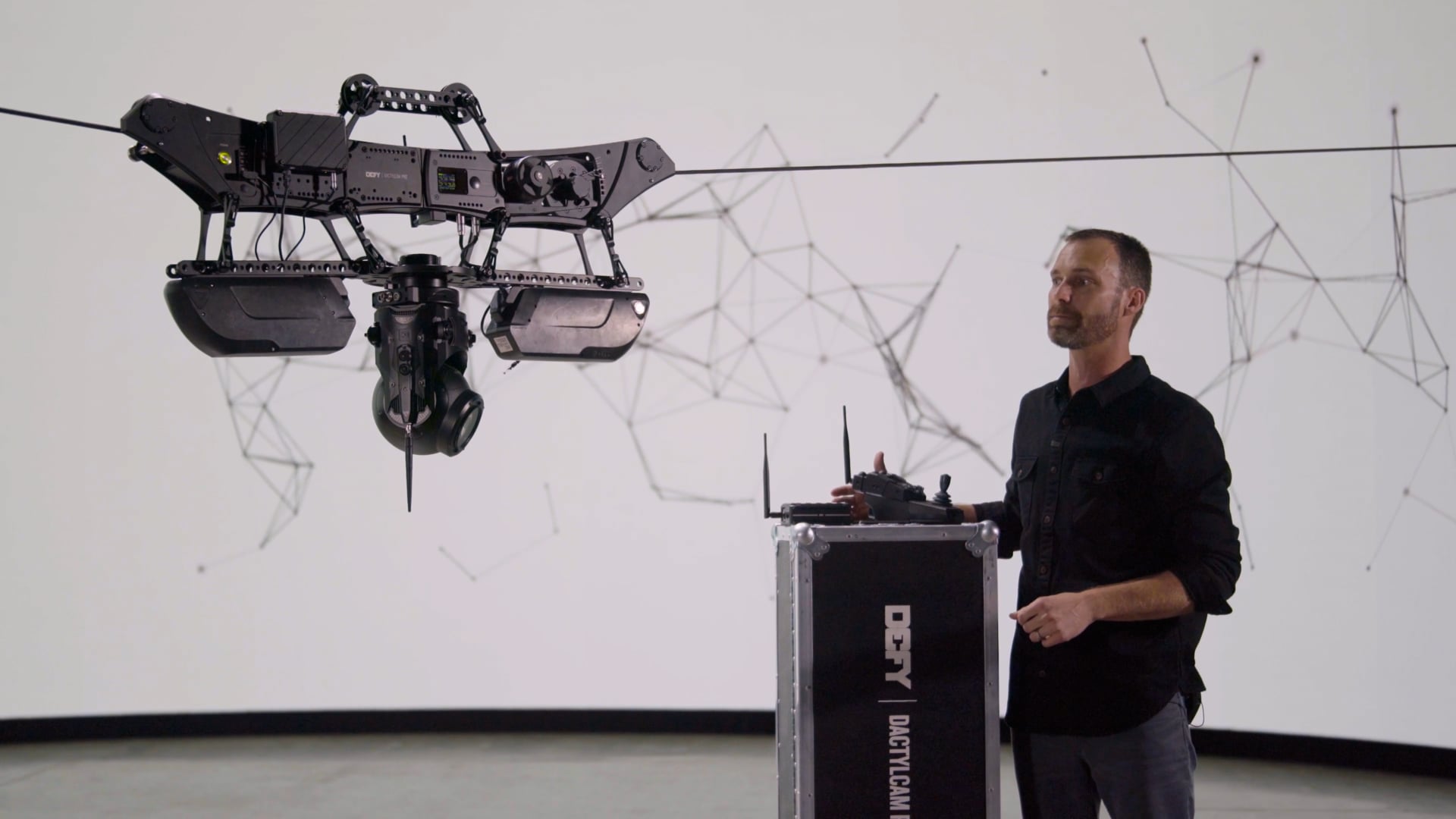

LIVE


The 56V Dactylcam Pro LIVE was built for broadcast with the professionals in mind. With extended run times, massive payloads, accessory power options and long range RF systems We’ve created a full turn key live ecosystem.

|   DACTYLCAM \\ LIVE

END To END.
BroADCAST SoLuTIoN.


Built for broadcast.

Engineered for live broadcast, sports and entertainment. we provide a smart, simple and safe 2D solution for the live world.

image 142.png

DACTylCAM LIvE SPECS

10hrs

Fully
Autonomous

SMART

Integrated RF
Ethernet Control

BATTERY
LIFE

Ip

Dactylcam Live - 56 high capacity brushless motor providing 40% mroe efficient power and driven from our new motor controller allowing silent opertion. 10 Hours of run time for 2 high output 16Ah Li-Ion batteries and 20% greater torque with no need to cool the motor.



IP control of sled and head via optional ethernet switch utilizes a single data radio to control both sled, head and accessories.

Single operator

Single operator sled controls

optional footpedals

pulse controller

footpedals and pulse controller_ 2.png

Programing the system is all done through the pulse controller which provides the operator with an intuitive and ergonomic hand controller which controls power, speed, digital end stops, take off and landing.

LoNG rANGE
DATA CoNTroL

Purpose built for the highest demanding camera packages and payloads where speed and performance matter most. 56v brushed motor paired with a high amp motor controller with dual 16Ah batteries deliver incredible fast take off and top speeds yet detailed programmability to dial in operational and performance preferences.

915mhz

868mhz

ethernet

Custom

2.2ghz

Control of sled and head via optional ethernet switch utilizing 1 radio for entire data control.

DCam_detales_V3_5 2.png
Mask Group-1.png

MorE poWEr For ACCESSorIES.

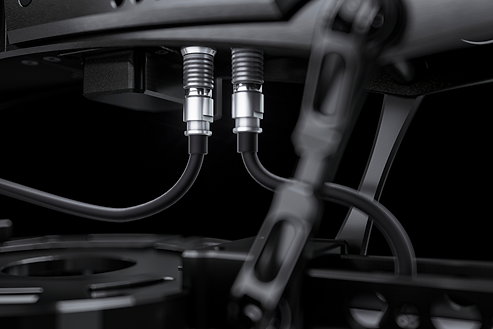

Our ecosystem utilizes the same on-board high output 48v power to provides various industry standard power options: 24v, 48v lemo out-puts and (8) 14v Dtaps. All of these options simplify your power options and will run your accessories for hours. No need to constantly change batteries.

On-Board Power

14volts output

56volts input

24volts output

48volts output

Mask Group.png

SMArT. SIMpLE. SAFE.

To further enhance safety and performance, the sled adds physical line lockers keeping the drive line adaptive on the sled at all times. Additionally a safety bracket allows the secondary safety line to stay captive in the sled.

Captive
safety wheels


SAFETY
LINE

ultratech line 10,000LB
BrEAKING STrENGTH

Captive
line lockers

DIGITAL END STopS

Digitally programmed end-stops are site by the operator for the left and right side of the run.
User preferences allows end stop dampening, acceleration and overall top speed.

privacy (1).png

1. Operator can digitally set
an endstop anywhere on the line


2. Operator can drive sled
to each end of the track to auto engage an end stop.

image 159.png

3. Physical stops are attached to the track to ensure sled is always captive on the track.




DSC07117 (1).jpg
20211013-DSC04796 (1).jpg
Copy of Mask Group_edited.jpg

The most important factor in aerial video is safety. We strive to provide our customers, operators and techs with the most reliable single axis safety systems in the industry. The Dactylcam LIVE has multiple safety redundancies allowing the system to operate safely over large crowds, venues and extensive stage designs.

Multiple
redundancy.

image 176-1.png
Copy of Mask Group.png

high output
brushless motor

quad dtap
14.8v

adjustable
drive wheel

safety
brackets

ethernet switch

915mhz internal af

ex250 4k

dual 56v
power

dual digital
encoders

TrANSporT MADE EASY.

The Dactylcam Live ships in a single case allowing easy transportation & quick deployment
to go out of the case & in production in minutes.

DACTYLCAM live

dactyl live_.png
